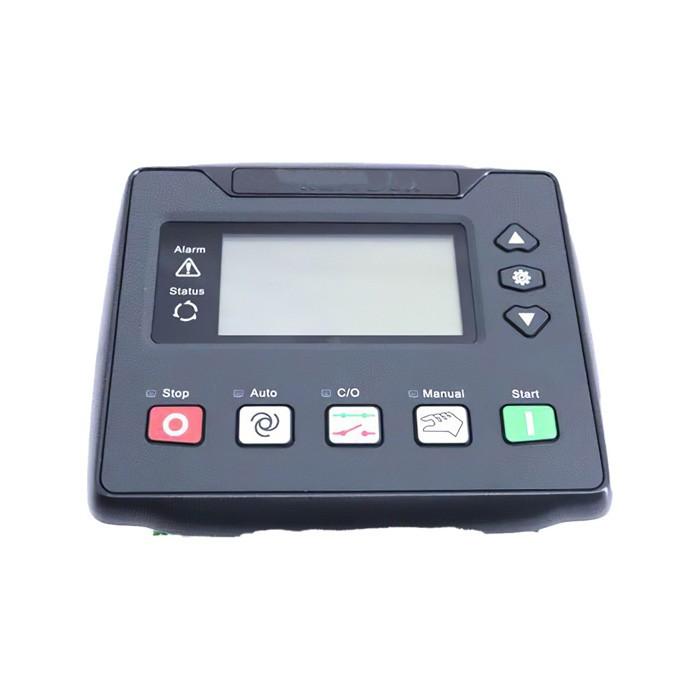

Smartgen Gensets Controller HGM420 Generator Control Module HGM420

Smartgen Gensets Controller HGM420 Generator Control Module HGM420

Specification:

Product Code ?010004
Power Supply C(8-35)V
Case Dimensions ?130*112*39(mm)
Panel Cutout ?10*90(mm)
Operating Temp. ?-25~+70) ?/strong>

Features:
1, 132x64 LCD with backlight, selectable language interface (Chinese, English, Spanish, Turkish and Russian), push-button operation;
2, Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;
3, Collects and shows 3-phase voltage, current, power parameter and frequency of generator or mains.
4, For Mains, controller has over voltage, under voltage and loss of phase detection functions; For generator, controller has over voltage, under voltage, over frequency, under frequency and over current detection functions;
5, Precision collect and display parameters about Engine,
6, Control & Protection: automatic start/stop of the genset, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
7, With ETS(Energize To Stop), idle control, pre-heat control, speed raise control and speed drop control function, All output ports are relay-out;
8, Parameter setting: parameters can be modified and cannot be lost even in case of power outage; all the controller parameters can be adjusted using front panel of the controller or via PC using an SG72 adaptor.
9, Multiplex input port 3 and 4 can be used in various fields: input 3 can be used as auxiliary input port or fuel level sensor while input 4 can be used as auxiliary input port or configurable sensor.
10, More kinds of curves of temperature, oil pressure, fuel level can be used directly and users can define the sensor curves by themselves;
11, Configurable sensor: can be set as temperature sensor, oil pressure sensor or fuel level sensor, enable the detection of double temperature, double oil-pressure and double fuel level.
12, Multiple crank disconnect conditions (magnetic pickup, oil pressure, generator frequency) are optional;
13, Widely Power supply range: DC(8~35)V, suitable to different start battery voltage environment.
14, All parameters used digital adjustment, instead of conventional analog modulation with normal potentiometer, more reliability and stability;
15, Modular design, self-extinguished ABS plastic enclosure, pluggable connection terminals and embedded installation way; compact structure with easy mounting.
